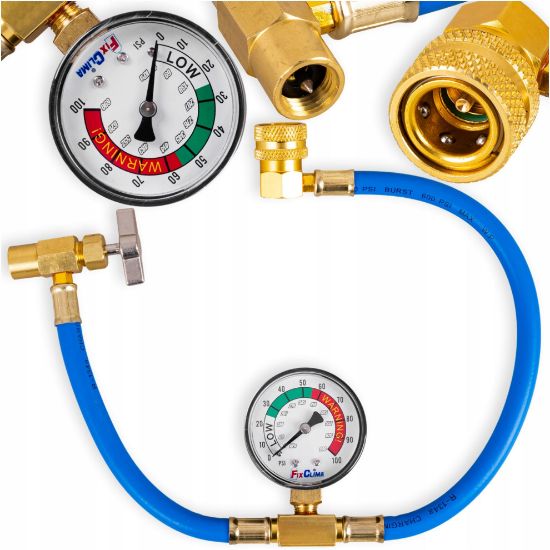

Hose with pressure gauge for filling R134A

Professional hose with pressure gauge for refilling R134A air conditioning in cars. Enables quick and precise refilling of refrigerant, ensuring the smooth operation of the system. Ideal for self-refilling car air conditioning.

Manufacturer: FixClima

Najniższa cena z 30 dni: €14.70

€14.70

Qty:

Key product features

Hose with pressure gauge - The hose with pressure gauge is necessary to complete the air conditioning system. After connecting to the low pressure valve, you will obtain a pressure reading on the pressure gauge. It is reusable, so it does not pollute the environment.

Markings on the pressure gauge:

Color WHITE - range 0-25 PSI: too low pressure in the system. The refrigerant needs to be topped up.

GREEN - range 25-55 PSI: correct, preferred system pressure. System filled correctly (see chart below).

RED - above 55 PSI: too high system pressure. It should be reduced to the proper level.

Pressure and ambient temperature:

The correct air conditioning system pressure indicated by the pressure gauge will vary depending on the ambient temperature:

TEMPERATURE - PRESSURE:

18°C - 25-35 PSI
21°C - 35-40 PSI
24°C - 35-45 PSI
27°C - 40-50 PSI
29°C - 45-55 PSI
32°C - 45-55 PSI
35°C - 50-55 PSI
38°C - 50-55 PSI
41°C - 55 PSI
43°C - 55 PSI

The system can also be charged below18°C, but in this case the pressure gauge will show a pressure below25 PSI.

Products specifications

Attribute name	Attribute value
Application	Home/industrial AC
Manometer included	Yes
Adapter included	No
Hose included	Yes
Refrigerant compatibility	Requires an HP/LP adapter for selected models from 1995-2016: - R134A Requires an adapter for the following refrigerants: - R1234YF - R12
